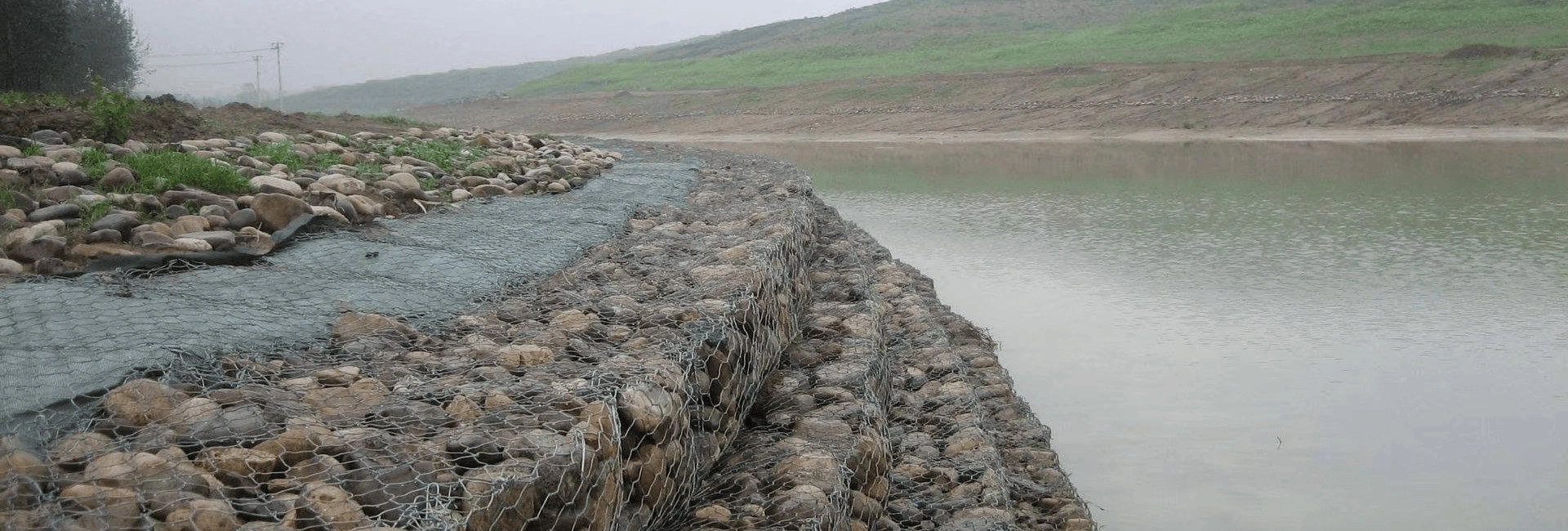

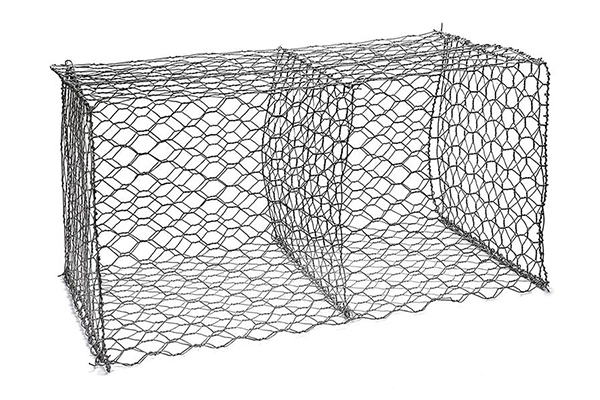

Gabion Basket which are also called Hexagonal woven gabion mesh are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.
Gabion Basket Specification | |||
Mesh size(mm) | (PVC Coated)Inner/outside(mm) | Galvanized | Galfan |
60*80 | 2.0mm/3.0mm-2.8mm/3.8mm | 2.2mm-3.8mm | 2.2mm-3.8mm |
80*100 | 2.2mm/3.2mm-3.0mm/4.0mm | 3.2mm-4.0mm | 3.2mm-4.0mm |
100*120 | 2.4mm/3.4mm-3.2mm/4.2mm | 3.4mm-4.2mm | 3.4mm-4.2mm |
140*160 | 2.7mm/3.7mm-3.5mm/4.5mm | 3.7mm-4.5mm | 3.7mm-4.5mm |
Regular Size of Gabion Basket | ||||
Length(m) | Width(m) | Height(m) | Diaphragm | Volume(m3) |
1 | 1 | 1 | 0 | 1.0 |
1 | 1 | 0.5 | 0 | 0.5 |
2 | 1 | 1 | 1 | 2 |
2 | 1 | 0.5 | 1 | 1 |
3 | 1 | 1 | 2 | 3 |
3 | 1 | 0.5 | 2 | 1.5 |
3 | 1 | 0.3 | 2 | 0.9 |
4 | 1 | 0.5 | 3 | 2 |
4 | 1 | 0.3 | 3 | 1.2 |
Material | Hot dip galvanized, Galfan galvanized wire, Pvc coated galvanized | |||
Hot dip galvanized-Zinc coating | 40-60g/m2, 240-300g/m2(heavy galvanized) | |||
Tensile strength | 350-550Mpa | |||
All sizes can customized according to your request | ||||

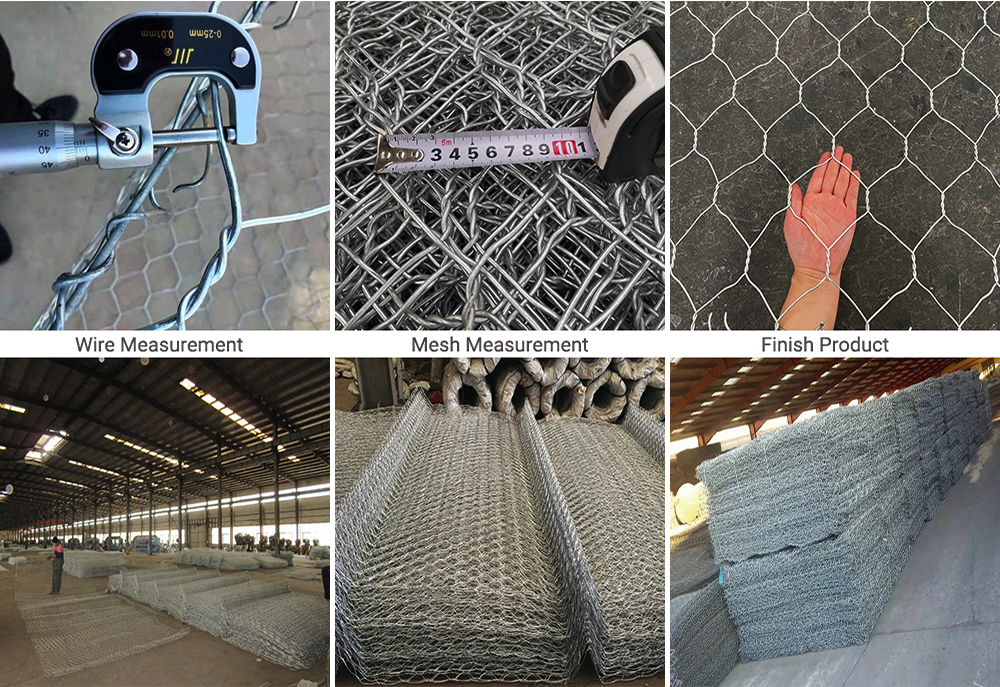

Galvanized steel wire: High quality low-carbon steel wire is usually used, with a diameter between 2.0mm and 4.0mm, a tensile strength of not less than 380Mpa, and a maximum galvanizing amount of 300g/m ².
Zinc 5% aluminum mixed rare earth alloy steel wire (also known as Galvan steel wire): Its corrosion resistance is more than three times that of traditional pure galvanized steel wire. The diameter of the steel wire can reach 1.0mm to 3.0mm, and the tensile strength is not less than 1380Mpa.
Galvanized steel wire plastic coating: Covering the surface of high-quality low-carbon steel wire with a PVC protective layer greatly increases its protection in high pollution environments.

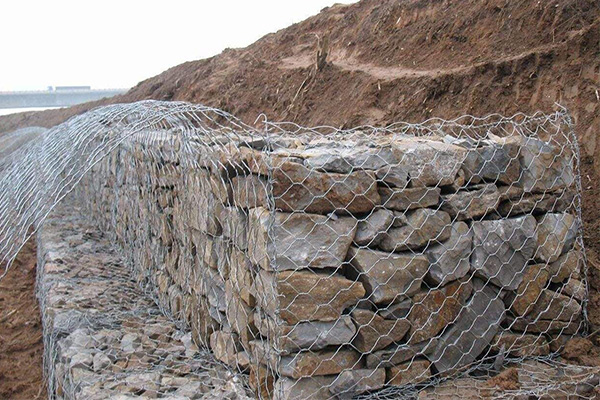

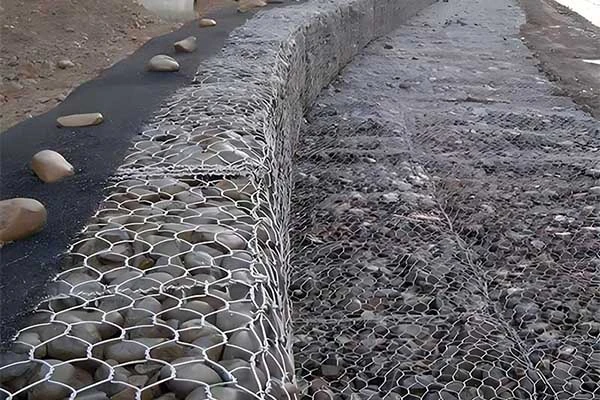

The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.

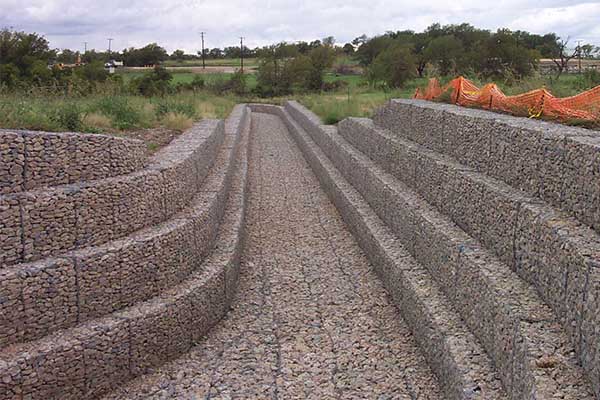

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection.

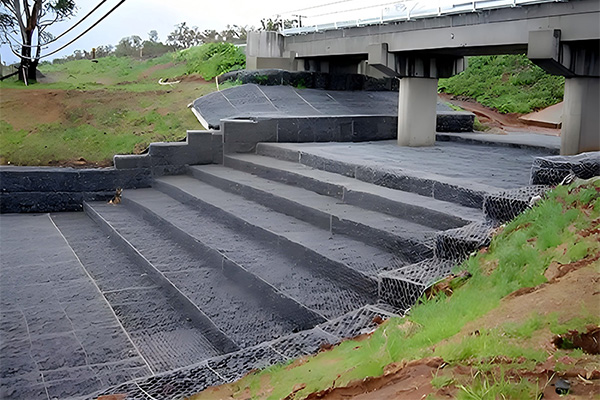

Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
