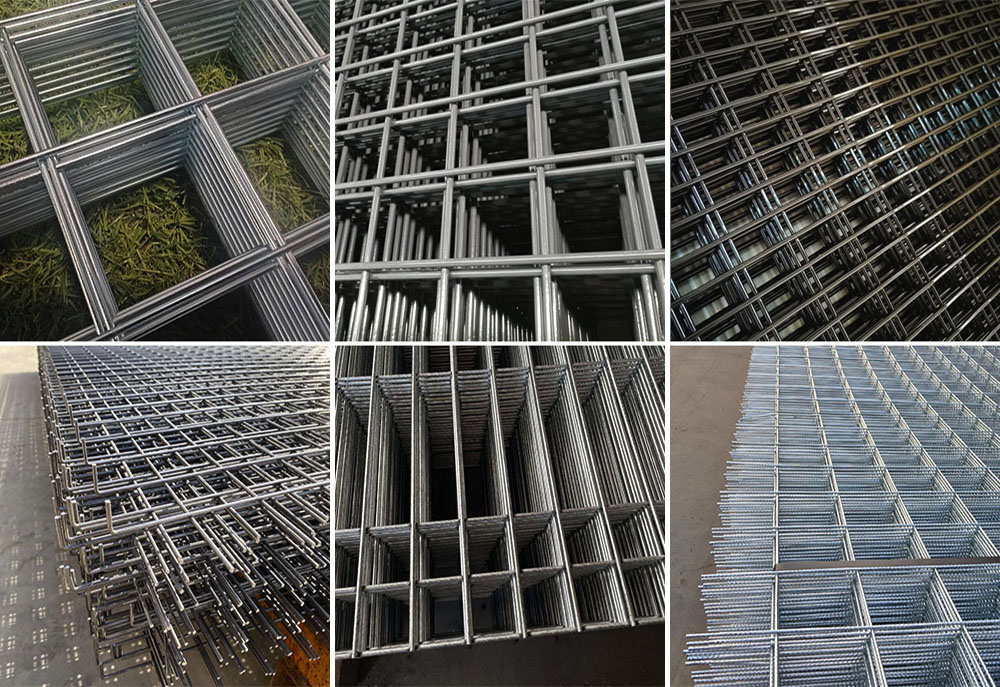

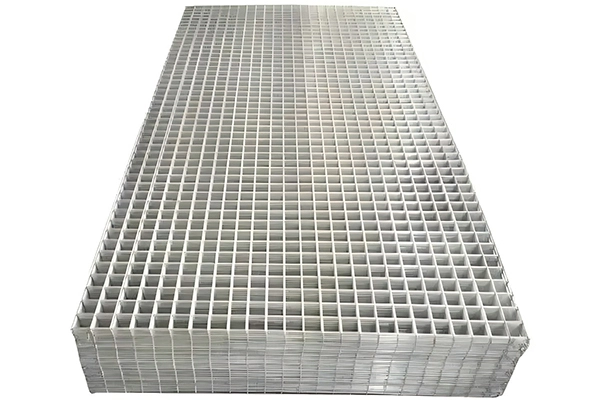

Welded wire mesh panel is a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.
Feature:
Smooth mesh surface and bright luster
Well-proportioned meshes
Strong welded points
High solid structure
Corrosion-resisting
Oxidation-resisting
Galvanized wire mesh panel
Galvanized mesh panels has thicker wire diameter and largeropening sizes for high security applications, such as prisonfencing, factory fencing and other site security fencing.
PVC coated wire mesh panel
PVC coated mesh panels offer a durable, low-maintenance, and cost-effective solution for a wide range of applications, combining strength, flexibility, and aesthetic appeal.
Stainless steel wire mesh panel
The stainless steel construction ensures that these mesh panels can withstand harsh environmental conditions, including exposure to moisture, chemicals, and extreme temperatures, without rusting or deteriorating.
Hot-dipped galvanized before welding wire mesh
Iron/galvanized wire+pvc coated
Stainless steel 304,316 wire
Electro galvanized before welding wire mesh
| Specification | ||||
| Hole size | Wire Diameter | Pannel Size | Surface Treatment | |
| Inch | Metric Unit | Width 0.4-2m Length 0.4-6m | Electric galvanized before welded Electric galvanized after welded Hot-dipped galvanized before welded Hot-dipped galvanized after welded PVC coated Stainless steel wire | |
| 1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
| 3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
| 1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
| 5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
| 3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
| 1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
| 1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
| 1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
| 2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
| 2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
| 4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
| 4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
| 6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
| 6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
| Note: Special specification can be made according to customers requires. | ||||

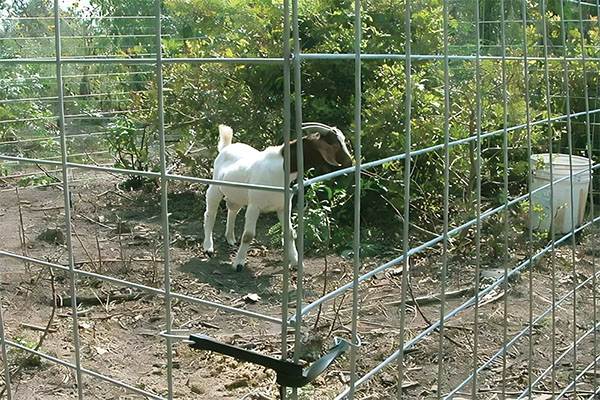

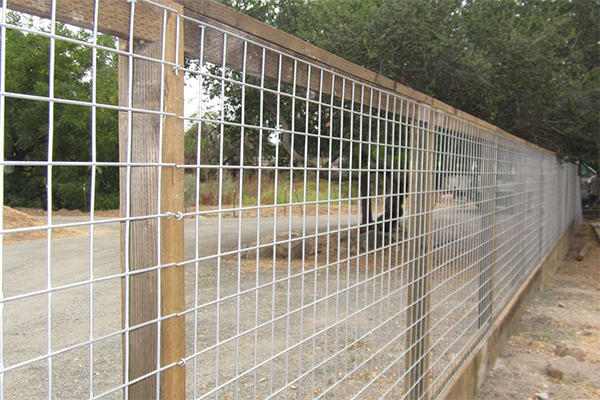

Agricultural field：It can be used as a livestock fence to prevent livestock from running around; It can also be used for crop protection, such as preventing birds from pecking at fruits and protecting vegetables from small animals.

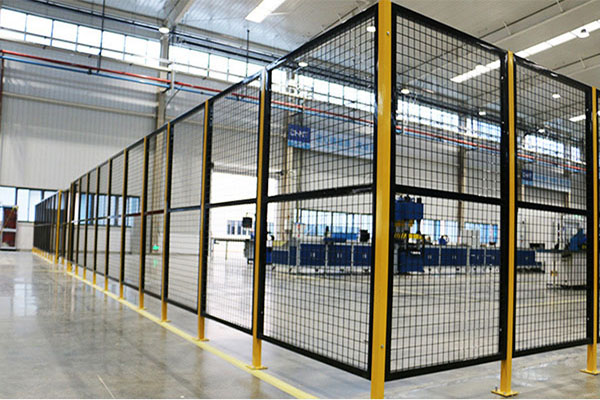

Industrial field: used as a protective fence for machinery and equipment to prevent personnel from accidentally coming into contact with hazardous equipment; It can also be used for scaffolding protection, edge protection, etc. in construction.

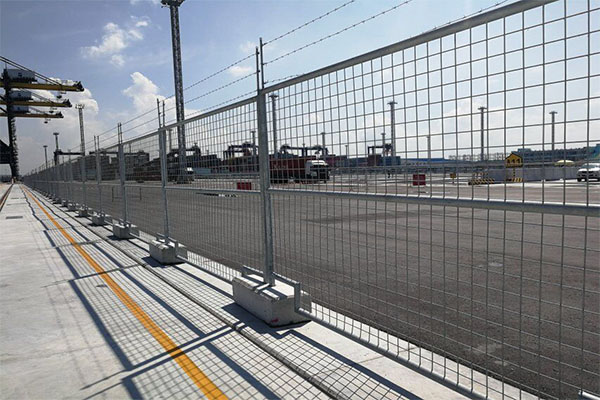

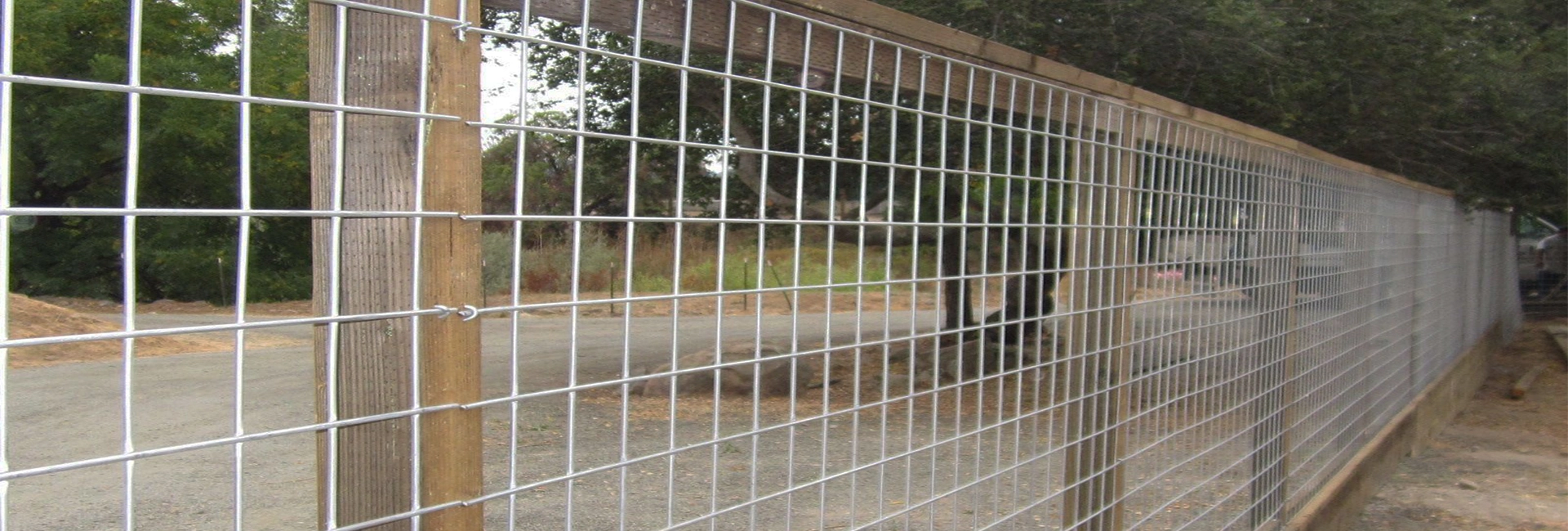

Transportation field: It can be used for road barriers, protective nets on both sides of highways, etc.

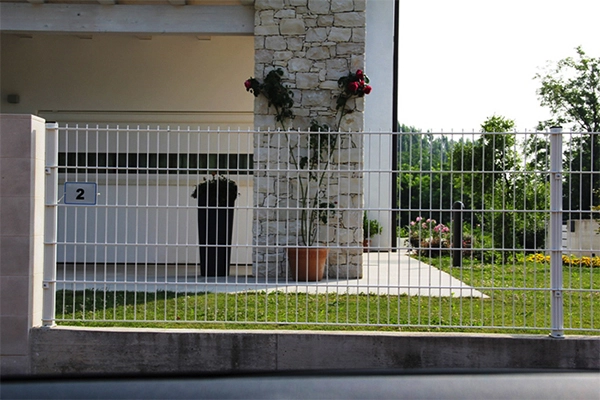

Horticulture field: used for decorative fences in gardens and parks, which are both beautiful and have a certain protective effect; It can also be used to make plant climbing frames.
Mining field: used for protection of mine tunnels, ore screening, etc.
Decoration field: In indoor and outdoor decoration, welded mesh can be used as a modeling element, such as making partition walls, artistic shapes, etc. By spraying different colors of paint, various unique visual effects can be presented.
