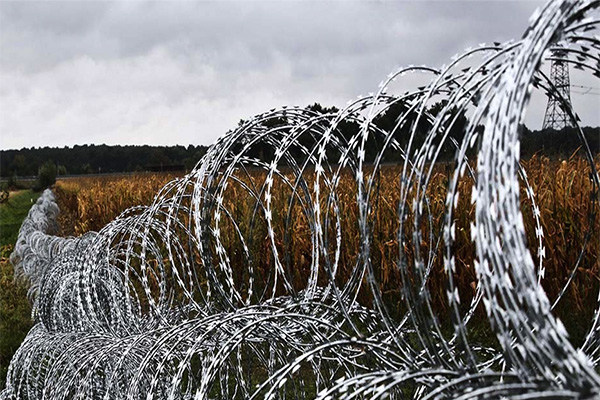

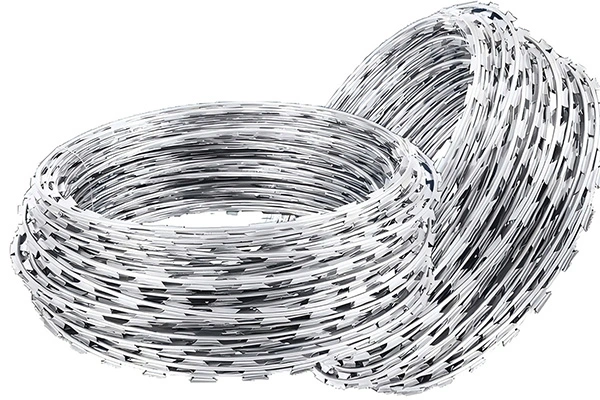

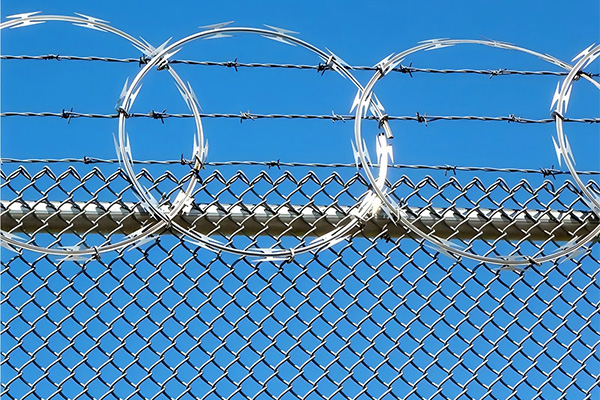

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Material: galvanized steel, stainless steel 304,430 etc.
Surface treatment: hot dipped galvanized, PVC coated etc.
Feature: easily assembled and easy to transport,ecofriendly, elegent apperance, professional technology support.

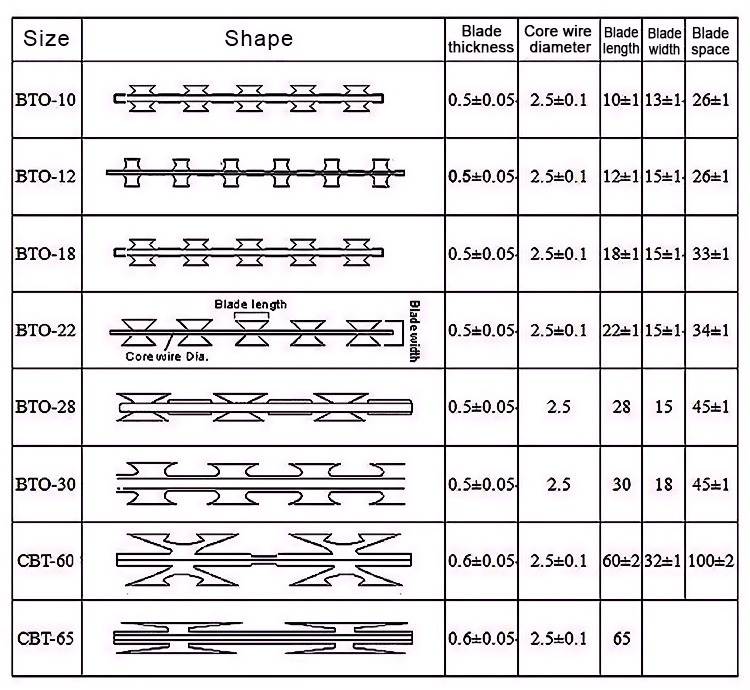

Razor Barbed Wire Specification | |||||
Reference Type Number | Thickness(mm) | Wire Diameter(mm) | Barb Length(mm) | Barb Width(mm) | Barb spacing(mm) |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
BTO-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
BTO-65 | 0.6±0.05 | 2.5±0.1 | 65 | 21±1 | 101±2 |
Outside Diameter | No.of Loops | Standard Length Per Coil | Type | Notes |
450mm | 33 | 8m | CBT-65 | Single Coil |
500mm | 41 | 10m | CBT-65 | Single Coil |
700mm | 41 | 10m | CBT-65 | Single Coil |
960mm | 53 | 13m | CBT-65 | Single Coil |
500mm | 102 | 16m | BTO-10,15,22 | Cross Type |
600mm | 86 | 14m | BTO-10,15,22 | Cross Type |
700mm | 72 | 12m | BTO-10,15,22 | Cross Type |
800mm | 64 | 10m | BTO-10,15,22 | Cross Type |
900mm | 52 | 9m | BTO-10,15,22 | Cross Type |
Note:Special specification can be made according to customers requires | ||||

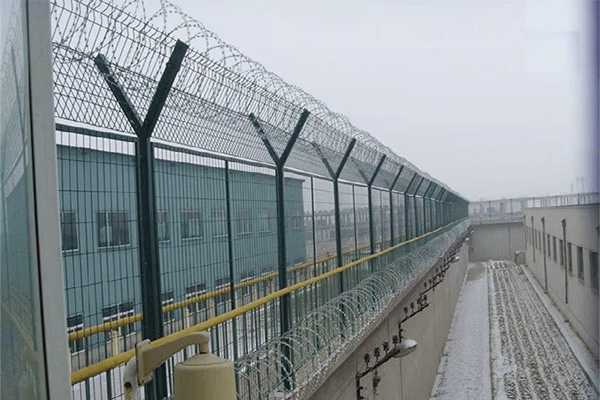

Prison protection: Razor wire is an important component of the prison protection system, such as the common BTO-22 razor wire isolation net, which has a diamond shaped hole pattern and cannot be passed by an adult clenched fist, effectively preventing prisoners from escaping.

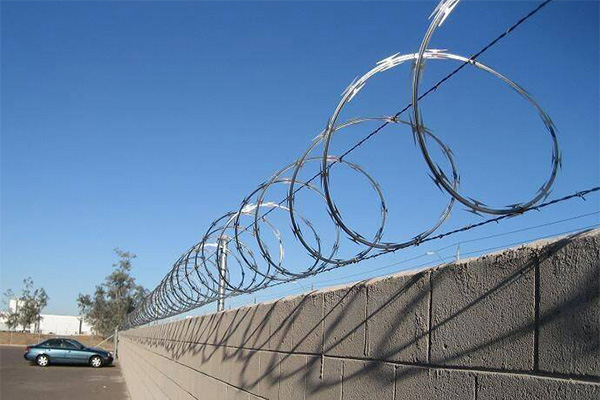

Protection of government agencies and important places: Installing razor wire in important places such as government office buildings, consulates, nuclear power plants, airports, and customs can enhance security and prevention capabilities, deter potential threats, prevent illegal intrusion and destruction, and ensure the normal operation of important national institutions and facilities
Protection of power facilities: razor wire can prevent unrelated personnel from approaching around power facilities such as substations and power plants, preventing human damage or misoperation from causing power accidents and ensuring the stability and safety of power supply

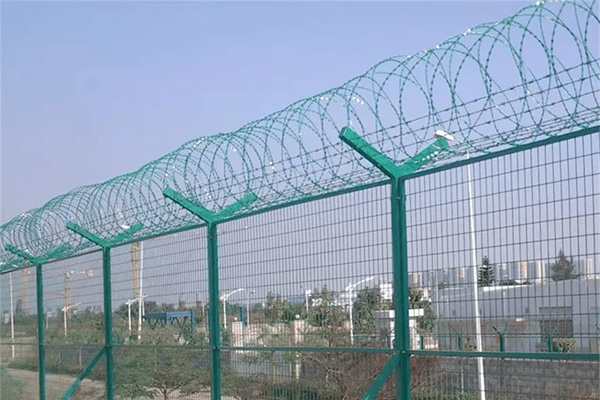

Railway and highway protection: In areas such as railway lines, both sides of highways, and isolation belts, razor wire can be used as isolation and protection facilities to prevent pedestrians, animals, etc. from crossing at will, ensuring the safety of railway and highway operations, and also playing a certain role in theft prevention
Forest protection: In order to prevent illegal logging and hunting, the forest farm will set up razor wire fences around the forest to protect forest resources and ecological environment.
