Our raw materials are made of high zinc wire or Galvan wire, and our products comply with EU standards.
Heavily Galvanized coating:
Comply with BS443/EN10244-2:2001,Table 1,Class A.
Tensile strength:
Comply with BSEN10218-2(BS1052)
Mesh spacing & Weld shear
strength: Comply with BSEN10223-4
Mesh tolerances comply with BS EN 10223-8 : 2013.
| Exposure conditions | Wire diameter (mm) | Galvanized wire | Galfan-coated wire | ||
| Corrosion ofzinc (years) | Total (years) | Corrosion of Galfan (years) | Total (years) | ||
| Severe | 3.0 | 4.6 | >5 | 5.2 | <6 |
| 4.0 | 4.6 | <6 | 5.2 | >6 | |
| 5.0 | 4.6 | >6 | 5.2 | >10 | |
| Mild | 3.0 | 46 | >50 | 50 | >70 |
| 4.0 | 46 | >50 | 50 | >80 | |
| 5.0 | 46 | >50 | 50 | >80 | |
The hot selling hole size is 50x50mm, 76.2x76.2mm,75x100mm,50x100mm,100x100mm

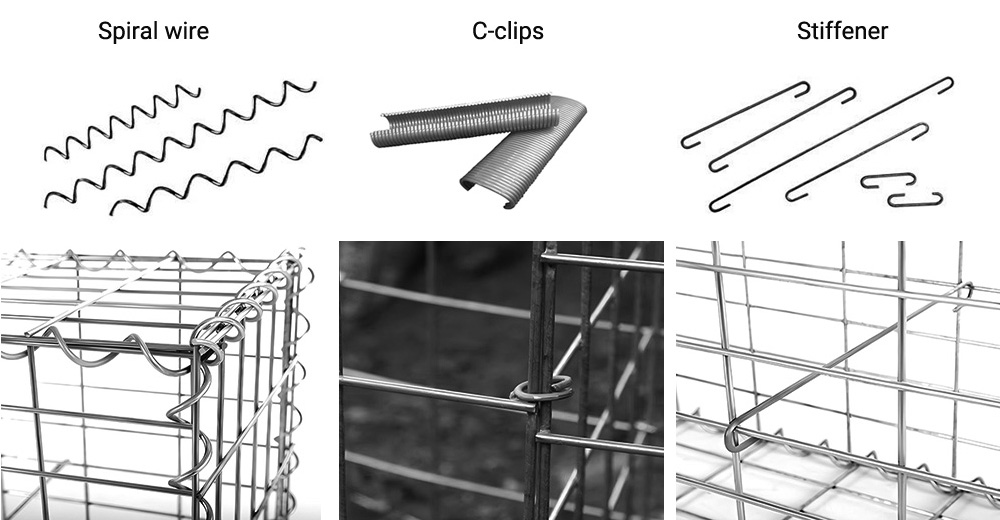

There are two installation types-spiral wire and C-clips. Spiral wire is more solid, C-clips is more beautiful and economical. We could supply all accessories, including all the helicals and rods required to assemble the gabions.
Welded Gabion box Specification | |||
Gabion size(m) | Mesh opening | Wire diameter | Surface treatment |
1×1×1 | 50 x 50mm | 3-6mm | Galvanized |
2×1×1 | |||
3×1×1 | |||
0.5×0.5×0.5 | |||
1×0.5×0.5 | |||
1×1×0.5 | |||
2×1×0.5 | |||
2×1×1 | |||
3×1×1 | |||
Generally, stiffener length 300mm, spiral binder wire diameter 2-4mm | |||
All sizes can customized according to your request. | |||
