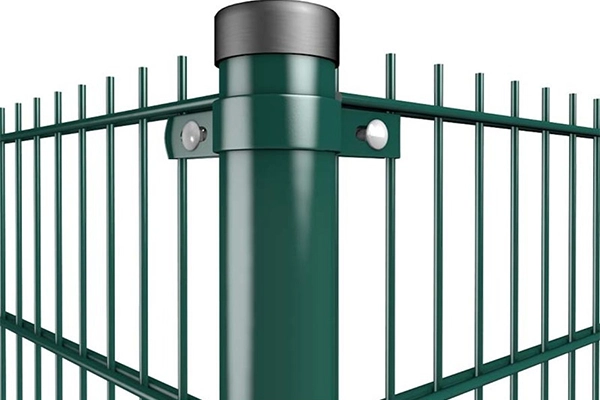

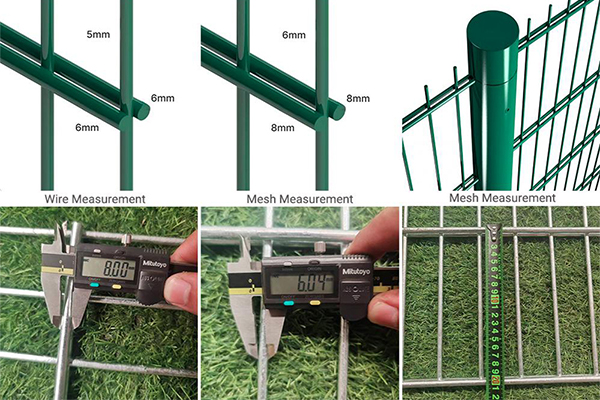

Double wire welded mesh fence also called 2D security fence, twin wire panel fencing, is welded with one vertical wire and two horizontal wires. According to wire thickness, the fence can be divided into 6/5/6 type and 8/6/8 type. This can be strong enough, compared to the normal welded fence panel. Its unique structure makes it stronger and more durable than single wire fence.

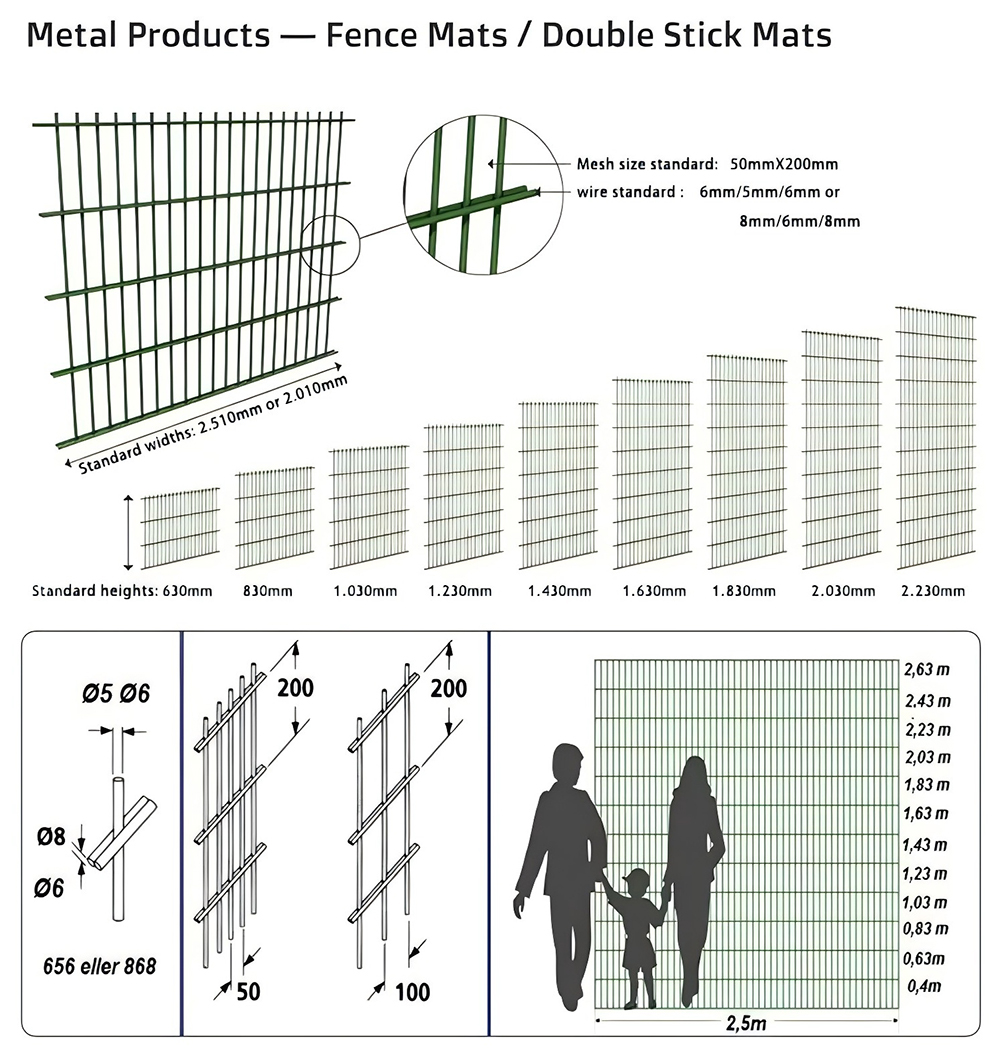

| Double wire welded mesh fence Specification | |||||
| Wire diameter | Mesh size | Panel height | Panel width | Post type | Finish |
| 5/4/5mm 6/5/6mm 8/6/8mm | 50*200mm | 1030mm 1230mm 1430mm 1630mm 1830mm 2030mm 2230mm | 2300mm 2500mm 2900mm | Peach post Square post Rectangle post | Pre-electro galvanized wire + Polyester Powder Coated /PVC Coated Pre-hot dip galvanized wire+ Polyester Powder Coated/PVC Coated Hot Dipped Galvanized after welding Galfan(200g/m²) + Polyester Powder Coated/ PVC Coated |
| NOTE：1. Special request can be customized 2. Colors as per RAL color | |||||
