The small mesh holes can greatly prevent people or tools from climbing, providing high safety protection performance. The grid density is high, making it difficult for tools such as scissors to insert into the middle of the grid for damage, and it has good resistance to damage. This is also an important reason why it is widely used in places with high security requirements such as prisons, airports, and military bases. Common surface treatment methods include galvanizing, dipping, and spraying. After these treatments, a protective film can be formed on the surface of the metal mesh, which can prevent corrosion and rust, and extend the service life of the guardrail mesh.

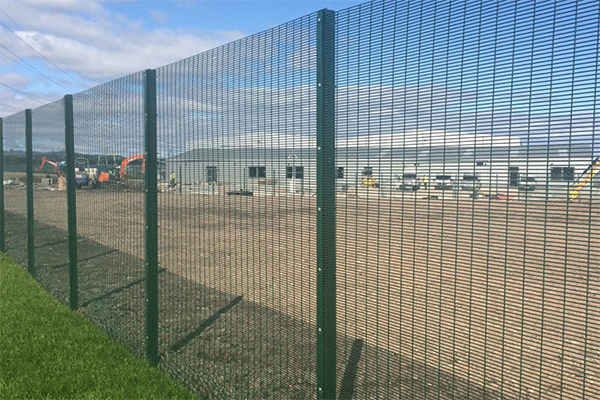

Anti Climb Mesh Fence

Anti Climb Mesh Fencing
Anti Climb Fencing Panels

Specification Parameters Table Products Display Application

Specification of Anti Climb Mesh Fence

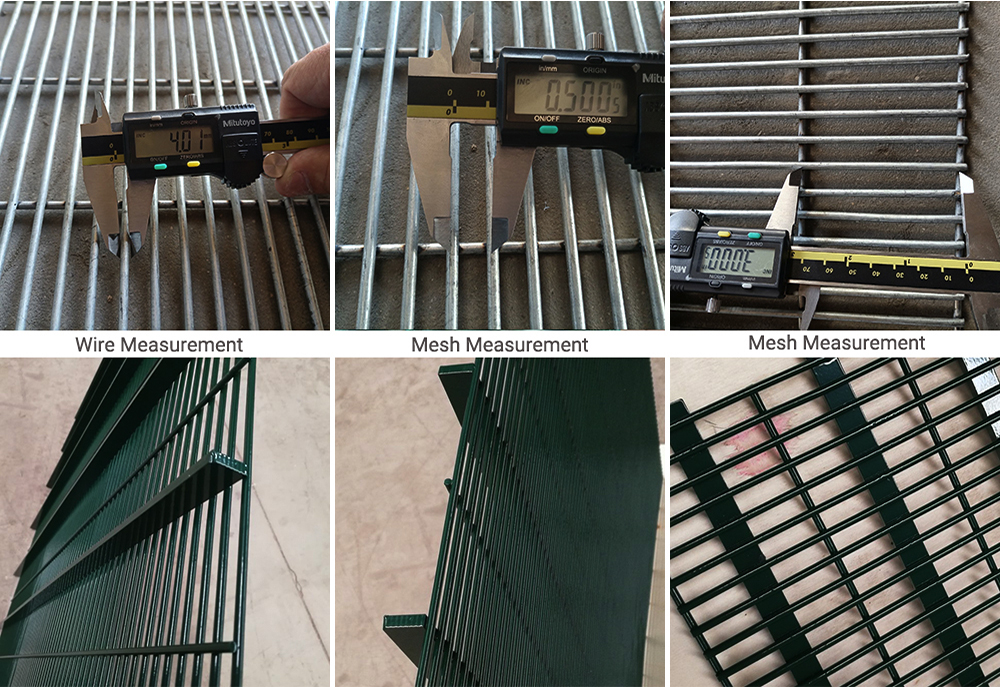

Anti climb mesh fence also known as " PRISON MESH ", this production offers the best value for performance, durability and appearance. '358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional structure designed for high security environments, combined with an steel framework, coated with heavily zinc or RAL color Powder coating.

Anti Climb Mesh Fence Parameters Table

Mesh	Wire Diameter	Panel Width	Panel Height	Post Type
76.2x12.7mm 75x12.5mm 75x25mm 75x50mm	Horizontal Wire: 3.2, 3.5, 4mm Vertical Wire: 4mm	1m-3m popular: 2.2m/2.5m/3m	1m-6m Popular: 2.5m/3m	Square Post(SHS) 60x60x2/2.5/3mm 80x80x2/2.5/3mm	Rectangular Post(RHS) 40x60x2/2.5/3.0mm 40x80x2/2.5/3.0mm 60x80x2/2.5/3.0mm
Surface Treatment: hot dipped galvanized, galvanized + powder coated
V-top: including angle iron, barbed wire,razor barbed wire
Connecting Methods: iron bar, hexagonal clamp, screws
Color: RAL 6005 green, RAL 7016 gray, All RAL color can be customized
