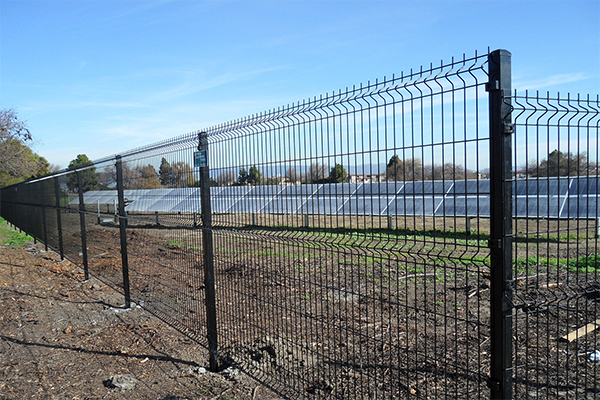

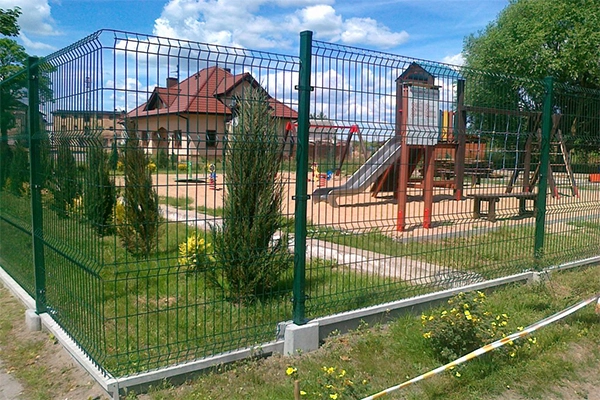

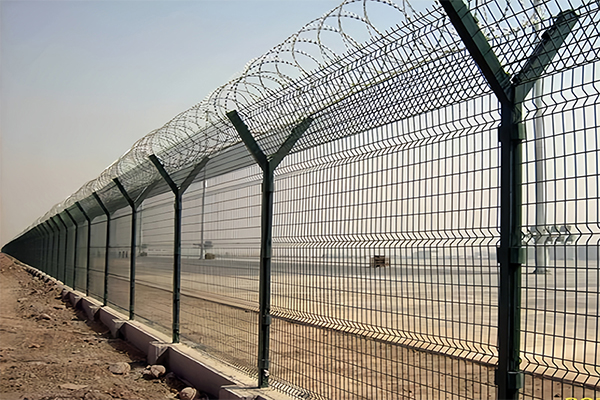

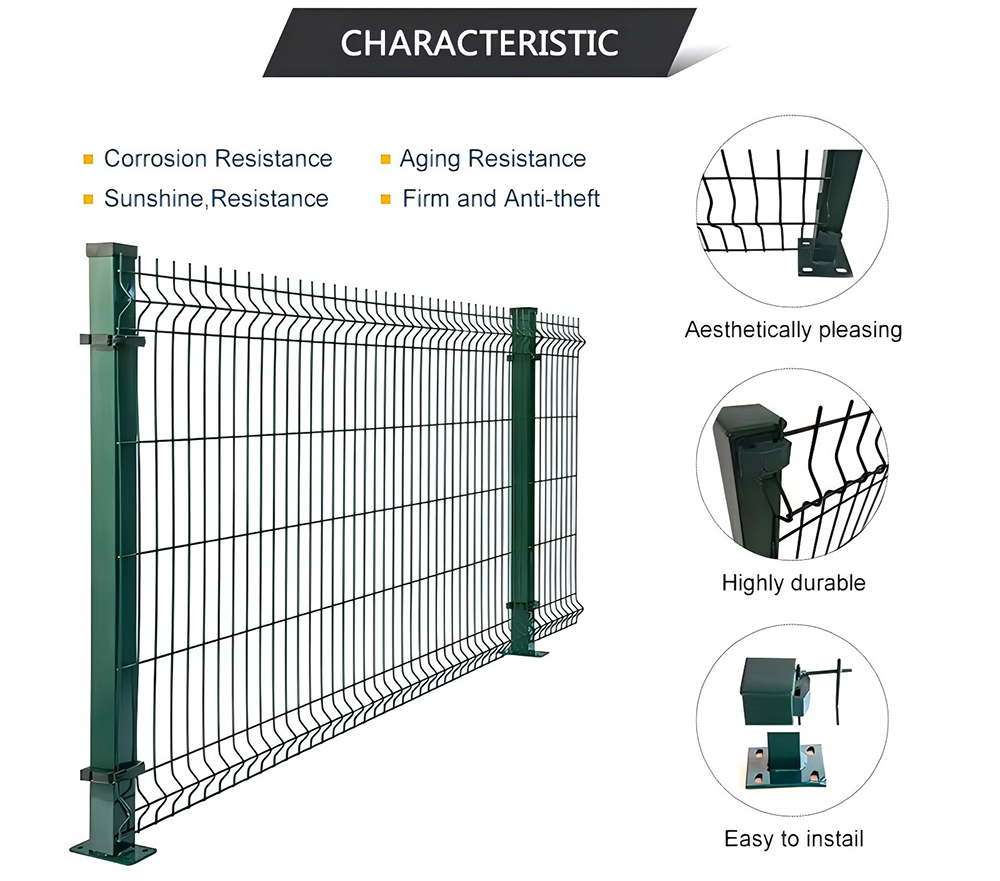

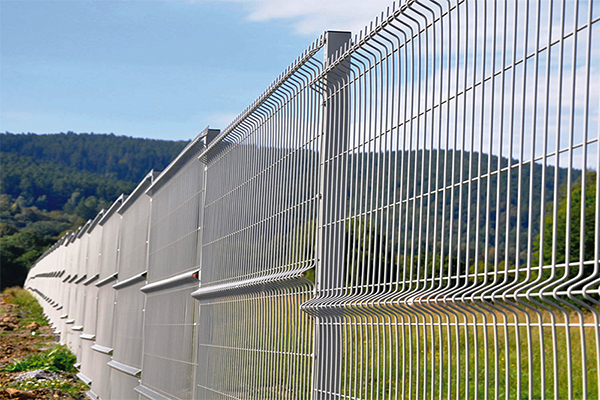

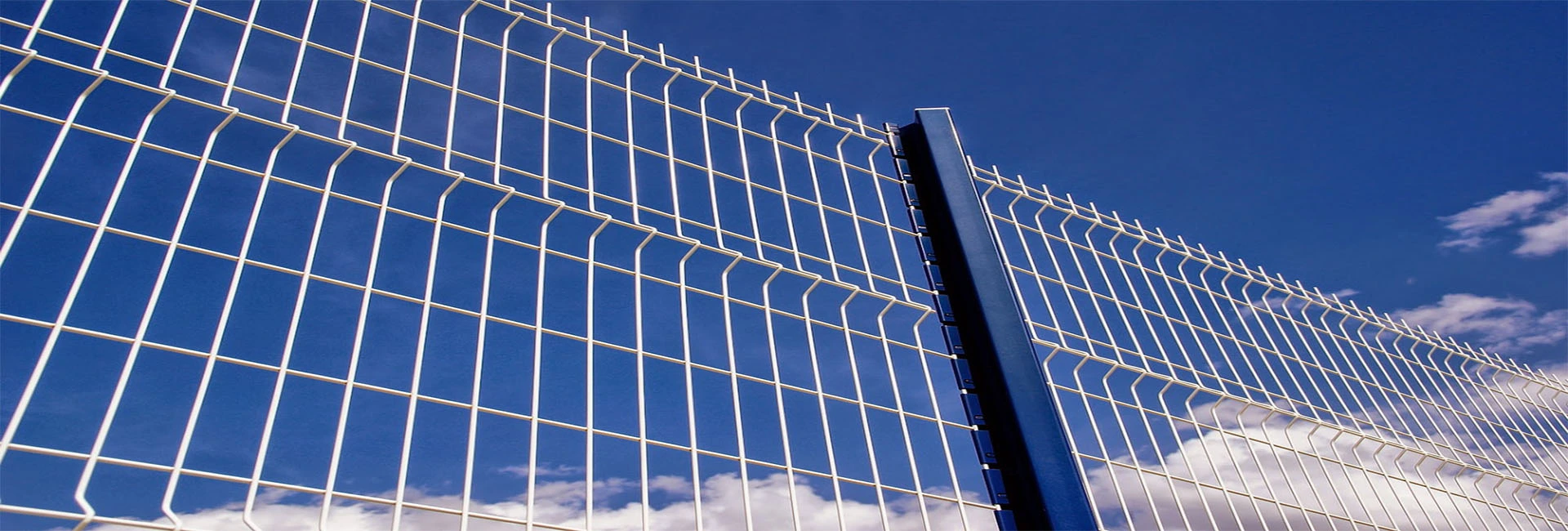

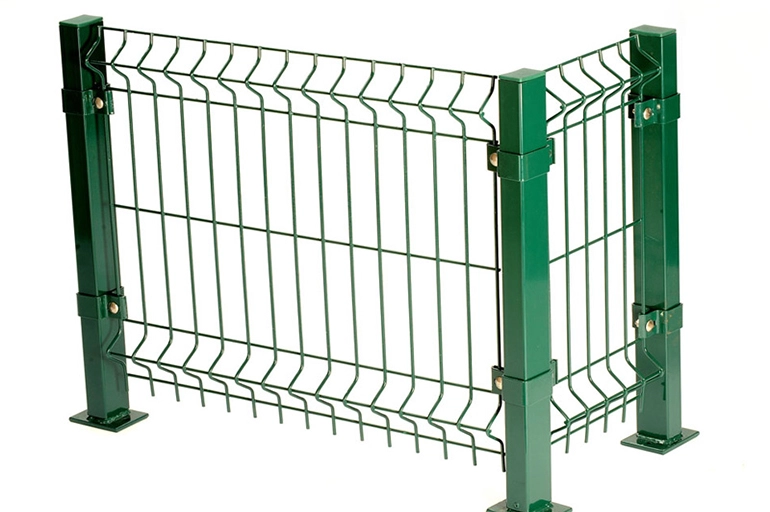

3D Curved Welded Wire Mesh also be called 3D Panel Fence, triangle mesh fence,V mesh security fencing or curved mesh fence, it has simple structure and nice appearance, The V curves will make the welded mesh panel more stable and stronger.
Using high quality iron as raw material,the welded panel,after galvanization,powder primer,and powders top coating,it can resist the corrosive and ultraviolet radiation very strongly.

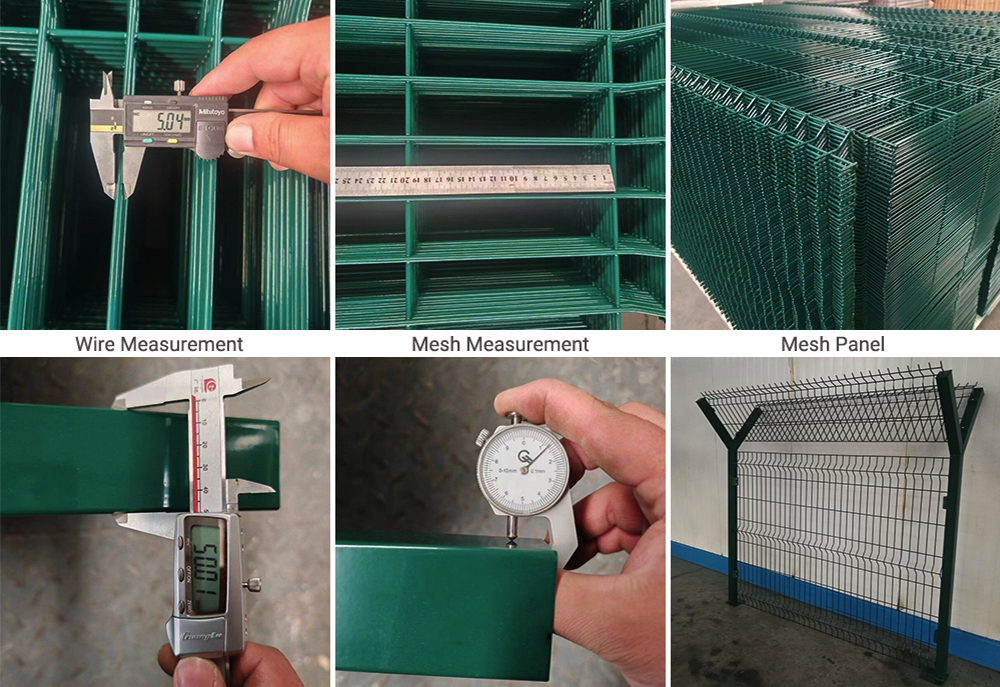

3D Curved Welded Wire Mesh Specification | |
Mesh Opening | 50x100mm/50x150mm/50x200mm/55x200mm/75x150mm |
Wire Diameter | 3.0/3.5/4/4.5/5.0mm |

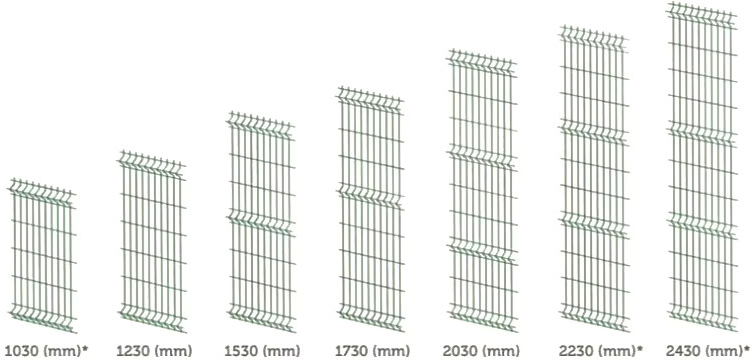

Panel Height | 0.6m-3.0m ( Suggest size : 2m/2.4m/3m ) |
Panel Width | 2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m ) |
Post Type | Round Post : 48x1.5/2.0mm 60x1.5/2.0mm |
Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm | |
Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm | |
Surface Treatment | hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating |
Color | RAL 6005 green, RAL 7016 gray, All RAL color can be customized |
Note | The fence can be customized according to your required if above specification is not satisfied with you |
